Has your car been acting up lately? Hesitating at acceleration, sputtering on the highway, or refusing to start at all. Before you assume the worst, there's a good chance the issue stems from the fuel pump and assembly. Knowing what you're dealing with before you start pulling things apart can save you time, money, and a lot of frustration.
Fuel delivery problems don't always announce themselves loudly. Sometimes the symptoms creep up so gradually that drivers chalk them up to bad gas or a rough week. Getting familiar with how your fuel system works and what breaks down first puts you in a far better position when it's time to decide on repairs.
At Haynes Manuals, we've spent decades helping drivers like you take on intimidating jobs. Fuel system work is one of those areas where having the right information ahead of time makes all the difference. Our Fuel Injection Techbook covers the fuel delivery system in detail, so you know exactly what you're working with before you turn a single bolt.
Understanding the Fuel Pump Assembly for Your Car

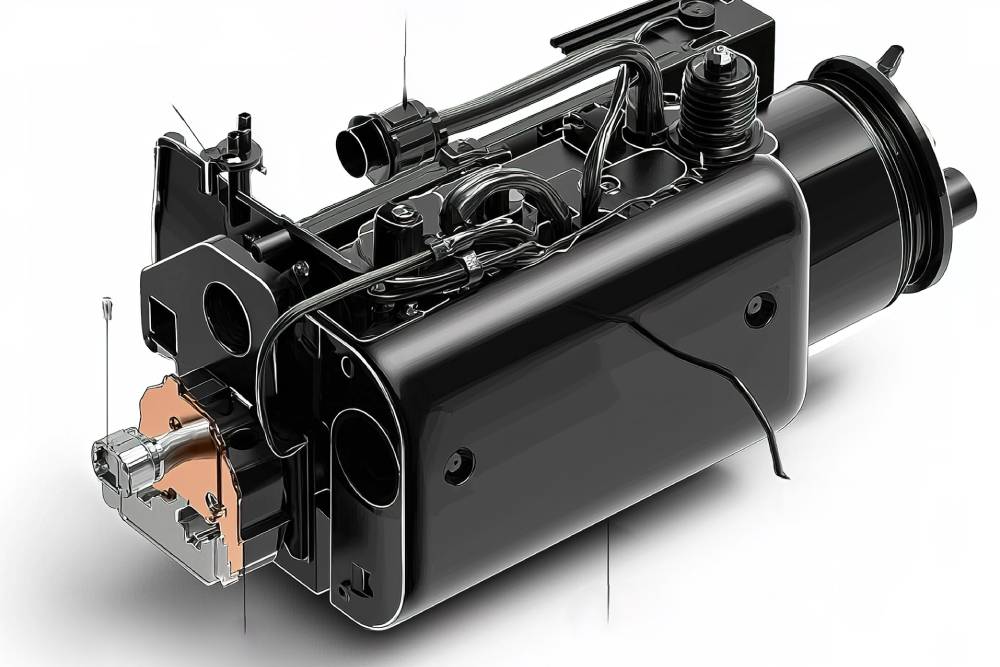

The fuel pump assembly for your car is more than just a pump. In most modern vehicles, it's a complete module that sits inside the fuel tank and includes the pump itself. A sending unit that communicates fuel levels to your gauge, a float arm, and a strainer or filter sock at the base.
These components work together as a single unit. When one part fails, the whole assembly often needs to come out, which is why understanding the module as a whole matters before you price out parts or plan your weekend.
Older carbureted vehicles used mechanical pumps mounted on the engine block, driven off the camshaft. Fuel-injected engines rely on electric pumps that pressurize the fuel before it ever reaches the injectors. The design difference is significant because the diagnostic steps and replacement process vary significantly between the two setups.
Our Engine Performance Techbook covers these diagnostic paths in detail if you want to rule out other causes before committing to the repair.
Signs Your Fuel Pump Assembly Module May Be Failing
Recognizing the warning signs early can prevent a breakdown from happening at the worst possible moment. Fuel pump problems rarely fail all at once. More often, the pump degrades over time. The symptoms become more frequent and more severe until the vehicle eventually leaves you stranded. Here's what to watch for:
- Engine won't start or takes several tries: A weakening pump may not be building enough pressure to start the engine on the first crank, especially when the engine is cold.
- Sputtering at high speeds: If your car runs well at low speeds but struggles under highway load, the pump may not be delivering adequate fuel volume when demand is highest.
- Whining or grinding noise from the tank: A healthy fuel pump hum is normal. A high-pitched whine or grinding sound often signals a worn motor or debris caught in the strainer.
- Sudden loss of power during acceleration: Lean fuel conditions caused by low pump pressure can cause the engine to stumble when you press the pedal.
- Engine stalling while driving: Intermittent stalling, particularly in hot weather, is a common symptom of a fuel pump assembly module that's losing its ability to maintain consistent pressure.
- Fuel gauge reading incorrectly: This one catches a lot of drivers off guard. The sending unit in the fuel pump assembly module communicates fuel levels to the gauge on your dashboard. When the sending unit fails, you may see the gauge read full, empty, or swing erratically.
If you're seeing more than one of these symptoms together, the fuel pump assembly deserves a close look before anything else.
What the Replacement Process Actually Involves
Replacing a fuel pump is a manageable DIY job with the right preparation. It isn't something to rush into without understanding the scope of the work first.
On most front-wheel-drive and modern rear-wheel-drive vehicles, the fuel pump assembly sits inside the tank. Access usually comes from underneath the vehicle or through an access panel beneath the rear seat. The tank may or may not need to come down depending on the vehicle design.
Fuel system work demands attention to safety. Fuel vapor is flammable, so any potential sources of ignition must be eliminated before you begin. Relieving the fuel system pressure before disconnecting lines is a step that should never be skipped.
The lock ring that holds the pump module in place can be difficult to remove without the correct spanner wrench. Forcing it risks damaging the tank or the module itself. Having the right tools for your specific vehicle before starting the job is not optional.
Once the old assembly is out, it's worth inspecting the condition of the fuel inside the tank. Rust, sediment, or varnish buildup can significantly shorten the life of a new pump.
Fuel System Diagnosis Before You Commit to Replacement
Replacing the fuel pump assembly without confirming it's the problem is an easy, expensive mistake. A fuel pressure test is the most direct way to know. Most auto parts stores loan out fuel pressure gauges, and the test takes only a few minutes.
If pressure is low at idle and drops further under load, the pump is likely the culprit. If pressure is normal but the engine is still running lean, the issue may lie elsewhere, such as with injectors, a fuel pressure regulator, or vacuum leaks.
Checking the fuel pump relay and fuse is also worth doing first. A failed relay is a much cheaper fix than replacing the entire assembly.
Get the Job Done Right the First Time
Fuel system repairs reward preparation. Understanding what the fuel pump and assembly include, diagnosing correctly before ordering parts, and having vehicle-specific guidance at hand can make a big difference.
Our manuals walk you through the complete process step by step, with photographs and specifications matched to your exact make, model, and year.
Ready to start your fuel system repair? Browse our manuals and Techbooks, or reach out to our team if you need help finding the right resource for your vehicle.
