How to Test a Car Battery: Voltage, Load Testing and Diagnosis
A weak car battery can leave you stranded without much warning. If your vehicle is slow to start, the lights seem dimmer than usual, or the battery repeatedly goes flat, it is worth testing the battery before replacing it.
The good news is that testing a car battery at homeis relatively straightforward. With a digital multimeter, a few basic checks and the right information for your vehicle, you can often work out whether the problem is the battery, the charging system or a poor electrical connection.
What You Need to Test a Car Battery
The most useful tool for basic battery diagnosis is a digital multimeter. A multimeter allows you to measure battery voltage with the engine off and check the charging voltage with the engine running.
For DIY vehicle maintenance, a multimeter is useful far beyond battery testing. It can also help you investigate electrical circuits, fuses, switches and charging-system problems.
Recommended tool: A model such as the Klein Tools digital multimeter is a useful addition to a home mechanic's toolbox. If you're looking for a lower-cost alternative, an AstroAI multimeter is another option.
Step 1: Inspect the Battery
Before reaching for a test meter, carry out a visual inspection of the battery and its connections.
- Look for corrosion or white, powdery deposits around the terminals.
- Check that the battery terminals and cables are secure.
- Look for cracks, leaks or signs of damage to the battery case.
- Check for a swollen or distorted battery case.
- Inspect the battery cables for damage or corrosion.
A damaged or swollen battery should not be treated as a simple low-voltage problem. If the battery case is damaged or appears swollen, seek professional advice rather than continuing to test or charge it.

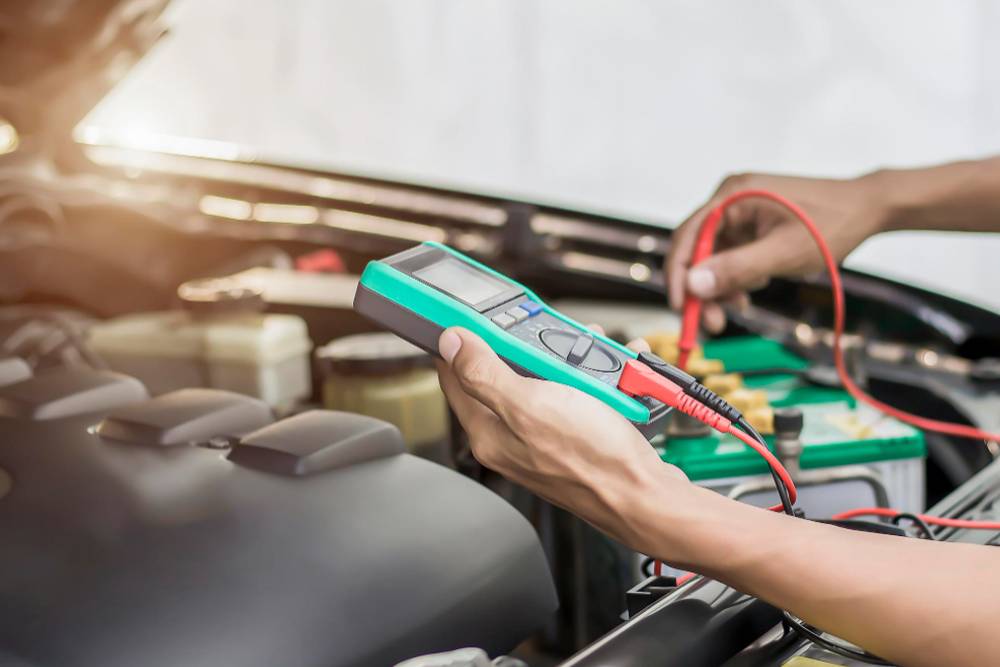

Step 2: Test the Battery Voltage
A digital multimeter can be used to measure the battery's resting voltage. For a typical 12-volt automotive battery, a fully charged battery will generally show around 12.6 volts when the vehicle has been switched off for several hours.
| Resting voltage | General indication |
|---|---|
| About 12.6V | Fully charged or close to fully charged |
| About 12.4V | Partially discharged |
| About 12.2V | Significantly discharged |
| Below 12.0V | Very low state of charge or possible battery problem |
These figures are useful guidelines rather than a definitive diagnosis of battery health. A battery can show a reasonable resting voltage and still fail when subjected to the high current demand of starting the engine.
Step 3: Carry Out a Load Test
A car battery load test checks how well the battery performs when it has to supply significant current. This is important because a battery can appear healthy when measured at rest but struggle when the starter motor is engaged.
A dedicated battery tester or suitable diagnostic equipment can provide a more complete assessment of battery condition. If your battery repeatedly struggles to start the vehicle despite showing a reasonable resting voltage, load testing can help identify a weak battery.
Step 4: Check the Alternator and Charging System
If your battery keeps going flat, don't automatically assume that the battery itself is faulty. A problem with the alternator or charging systemcan prevent the battery from being properly recharged while you drive.
With the engine running, a multimeter can be used to check the voltage at the battery terminals. The exact expected reading varies by vehicle and charging system, so check your vehicle-specific Haynes manual for the correct specifications.
A charging-system problem can be caused by more than the alternator itself. Wiring, connections, drive belts and other components can also affect charging performance.
What Causes a Car Battery to Go Flat?
A battery can lose charge for several reasons. Leaving lights or accessories switched on is an obvious example, but repeated short journeys can also prevent the battery from receiving enough charge.
- Battery age and natural deterioration
- Repeated short journeys
- Leaving electrical accessories switched on
- A failing alternator or charging system
- Parasitic electrical drain
- Corroded or loose battery connections
- Extreme temperatures
When Should You Replace a Car Battery?
There is no single mileage figure that determines when a battery needs replacing. Battery life depends on the vehicle, climate, usage and battery type.
If your battery repeatedly loses charge, struggles to start the engine or fails a suitable battery health test, replacement may be necessary. Before fitting a new battery, however, it is worth establishing why the old battery failed. Otherwise, a charging fault or electrical drain could simply discharge the replacement battery as well.
Use a Haynes Manual for Vehicle-Specific Information
Battery location, specifications, access procedures and charging-system information vary between vehicles. A Haynes manual matched to your car can provide the vehicle-specific information you need before testing, removing or replacing the battery.
For more involved electrical diagnosis, a Haynes manual can also help you understand the vehicle's wiring, charging system and relevant components.
With a multimeter, the right safety precautions and vehicle-specific information, car battery testing doesn't have to be a job for the repair shop. Testing the battery before it fails completely can help you identify developing problems and avoid an inconvenient breakdown.
