Dim, flickering, or completely dead headlights are more than an annoyance. Driving with compromised lighting puts you at real risk, especially on dark roads or in bad weather. A headlight assembly replacement can sound intimidating at first. However, once you understand what the assembly actually consists of, the job becomes much more approachable than most people expect.
The assembly is a housing system composed of several components that work together to project light, protect internal components, and keep moisture out. Knowing which parts are involved before you start means you will not be caught off guard mid-repair.
At Haynes Manuals, our Automotive Electrical Haynes Techbook covers electrical systems in detail. It includes lighting components, so you have the guidance you need before you touch a single bolt. Here is what you need to know about the five essential parts involved in any headlight assembly repair.

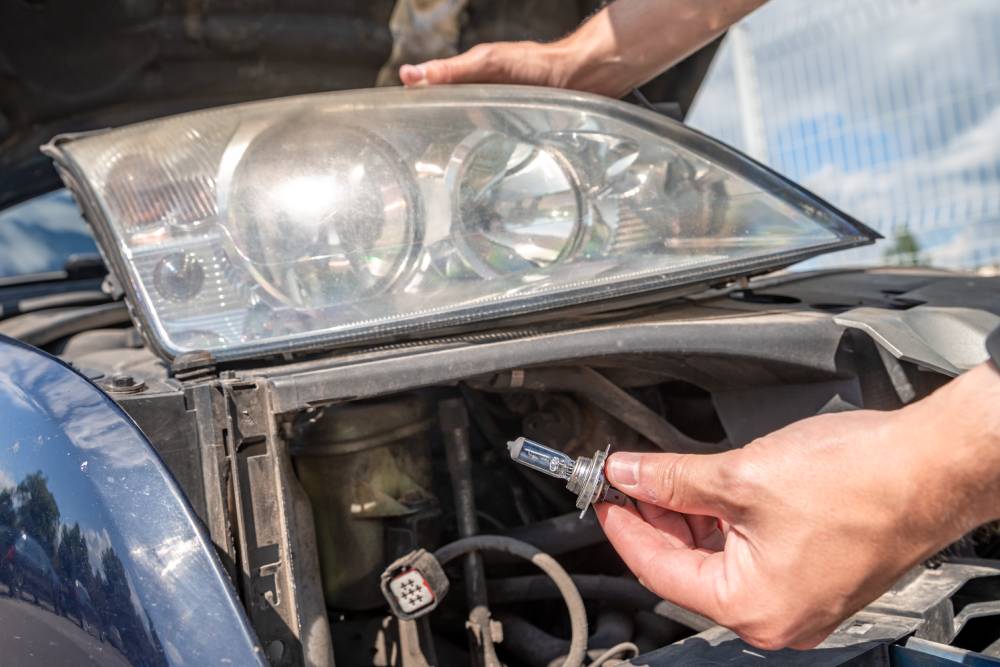

The Core Components of a Headlight Assembly Replacement
- The Headlight Housing
The housing is the outer shell that holds everything else in place. It is made from polycarbonate or hard plastic and is designed to take on road debris, moisture, and UV exposure over time. When a housing cracks, yellows badly, or is shattered by an impact, it needs to be removed completely.
Aftermarket headlight assemblies are widely available for most makes and models and often come as a complete unit. Going aftermarket can save you money compared to dealer pricing, but fitment accuracy matters. A housing that does not sit flush creates new problems with sealing and alignment. Always confirm compatibility with your specific vehicle year, make, and model before purchasing.
- The Bulb or Light Source
This is the part most people replace first, and with good reason. A burned-out bulb is the most common cause of headlight failure. The type of bulb your assembly uses depends entirely on your vehicle. Halogen, HID (high-intensity discharge), and LED are the three main types, and they are not interchangeable without additional modifications.
Replacing a bulb sounds straightforward, but some vehicles require significant disassembly to access the rear of the housing. In certain models, the wheel well liner or the entire front bumper section needs to come off just to reach the bulb socket. Knowing your vehicle's layout ahead of time saves a lot of frustration.
- The Lens
On older or high-mileage vehicles, the plastic lens over the headlight can become severely oxidized, hazy, or cracked. A cloudy lens scatters light rather than directing it forward, significantly reducing visibility even when the bulb itself is fine. In some assemblies, the lens is a separate replaceable component. In others, the lens and housing are sold as a single unit.
If your lens is damaged beyond what a polishing kit can restore, replacing the assembly makes more sense than chasing a fix that will not last.
- The Mounting Brackets and Hardware
Headlight assemblies attach to the vehicle frame via mounting brackets, bolts, and, sometimes, clips or tabs. These components are constantly exposed to road vibration. Over time, these items can crack, strip, or corrode. A headlight assembly that is not mounted securely will shift around, causing the beam to point in the wrong direction.
When replacing an assembly, inspect all mounting hardware closely. Reusing stripped bolts or cracked brackets is a shortcut that leads to repeated work. Replacement hardware is inexpensive and available at most auto parts stores. This is a detail that often gets overlooked, but it makes a real difference in how well the finished repair holds up.
- The Wiring Connector and Harness Pigtail
The electrical connector that plugs into the back of the headlight assembly is subject to heat, moisture, and vibration over its lifespan. Corrosion, melted insulation, or a broken locking tab on the connector can cause intermittent power failure or complete power loss to the light, even with a brand-new bulb installed.
Replacing a damaged pigtail connector is a straightforward job when you have the right guidance. Our Automotive Body Repair & Painting Haynes Techbook covers exterior component work in depth. Learn how body panels interact with lighting assemblies during replacement. Understanding that relationship helps you avoid damage to the surrounding trim when pulling the assembly out.
What to Check Before Starting a Headlight Assembly Installation
Before ordering parts or picking up a tool, a few checks will save you time and money.
Confirm the root cause of the problem first. A headlight that is not working is not always a failed assembly. A blown fuse, a faulty relay, or a grounding issue can mimic assembly failure. Testing the circuit before replacing parts rules out a misdiagnosis.
Check what type of assembly your vehicle uses. Some vehicles use a sealed-beam unit in which the bulb and lens are one piece, whereas others use a composite assembly in which the components are replaceable. Knowing this upfront tells you exactly what to order.
Look at the surrounding trim and bodywork. Headlight housings sit close to bumper covers, fender liners, and grille sections. Removing the assembly cleanly without damaging adjacent panels requires knowing what is clipped, bolted, or tucked underneath.
Vehicle-specific torque specs, wiring diagrams, and removal sequences are exactly the kind of information our manuals deliver. A repair done without that reference is a repair done with unnecessary guesswork.
Get the Repair Done Right the First Time
Headlight repairs are one of those jobs where having the right information matters just as much as having the right parts. Two vehicles from the same manufacturer can have completely different access requirements based on the year and trim level. Assuming the process is the same across models leads to broken clips, stripped fasteners, and a lot of backtracking.
If you want to do this repair correctly and not repeat it in six months, picking up the right Haynes Manual for your vehicle is the logical first step. Have questions about finding the right manual for your repair? Contact our team, and we'll help you find the exact Haynes Manual you need to get your headlights back in working order.
